FORBES AVIATION PRODUCTS LLC.

• OIL FILTER CUTTING TOOL
• SPARK PLUG TRAY
• SPARK PLUG GAPPER
• INSTRUMENT HOLE DRILL JIG
• 3ATI DRILL JIG & FILING TEMPLETE

Oil Filter Cutting Tool- For Filter Internal Inspection: Cuts filter quickly and cleanly without the oily mess from most tools sold on the market today. Removable center spindle for 13/16"-16 or ¾"-16 filter threads (the common filter threads). Simply screw filter onto bottom of tool and move cutting wheel into filter while cranking the handle. Tool can be placed in a bench vise (has steel clamping bar) the most popular method.Or remove clamp bar, by removing the clamp bar the tool can be mounted directly to a bench or on the wall, in a bench vise wherever you choose. Heavy-duty steel construction, high quality rugged design, hardened cutter. This is not a cheaply built tool, its all-metal construction will provide years of use. Our products are built to last,  not a cheep imported tool or made from imported parts. Replacement cutters avaliable. P/N FAP-16 TOOL _______________________________________ P/N FAP-16C Replacement cutter wheel.

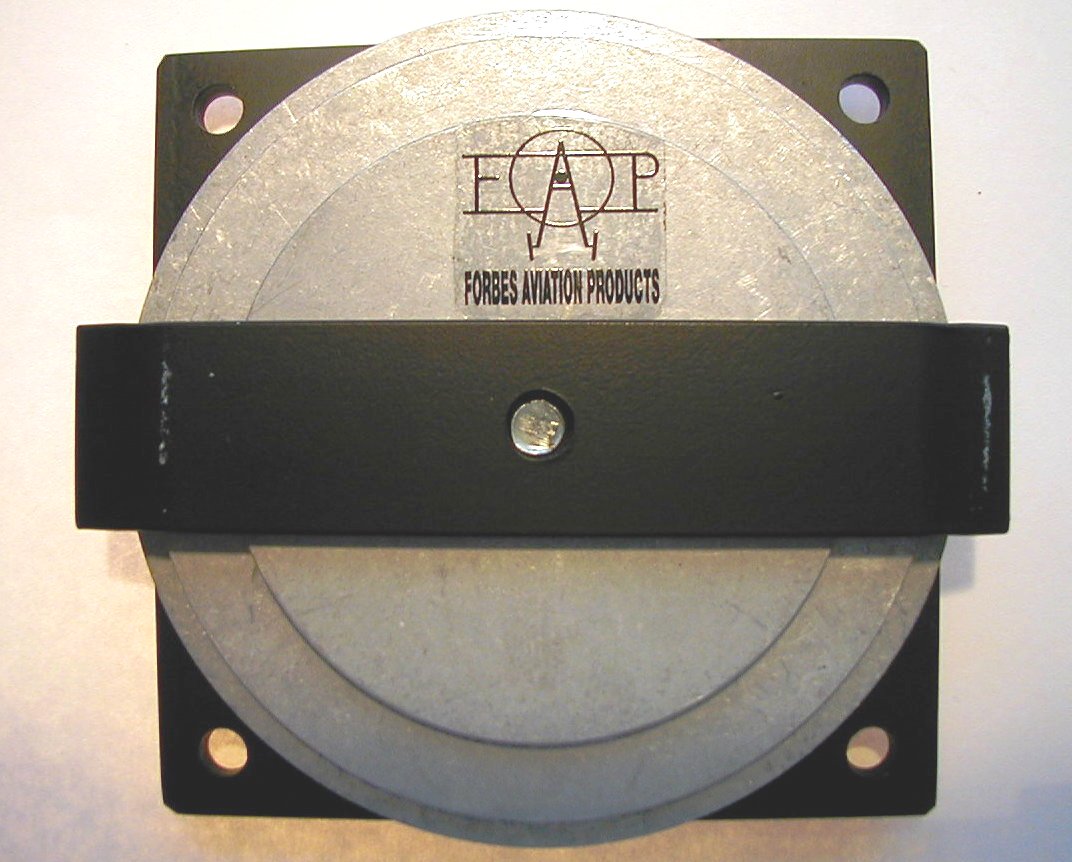

	DRILL JIG FOR STANDARD 2 1/4" & 3 1/8" DIAMETER INSTRUMENT MOUNTING HOLES. ACCURATE SIMPLE TOOL TO USE. DRILL JIG MADE OF HARDENED STEEL FOR LONG LIFE. AFTER MAKING INSTRUMENT HOLE SELECT 2 1/4'' DISC OR 3 1/8'' DISC TO LOCATE CENTER OF JIG CLAMP IN PLACE AND DRILL MOUNTING HOLES. P/N FAP 06

	SPARK PLUG GAPPING TOOL AN ECONOMICAL TOOL FOR GAPPING SPARK PLUGS. SCREW IN PLUG AND SET GAP BY TURNING EITHER THUMBSCREW FOR DESIRED GAP. MADE OF STEEL WITH BLACK OXIDE FINISH. DIMENSIONS: 1.25 DIA.X .80. P/N FAP-11

AIRCRAFT SPARK PLUG TRAY HOLDS 12 SPARK PLUGS EACH HOLE STAMPED WITH CYLINDER NUMBER ALSO MARKED TOP AND BOTTOM SO EACH PLUG CAN BE IDENTIFIED EASILY, NO MIX-UPS, PLUGS CAN BE SERVICED AND RETURNED BACK TO WHERE THEY WERE REMOVED,HANDLE TELESCOPES FOR EASY STORAGE. A MUST FOR AIRCRAFT MECHANICS.  MADE FROM 18 GAUGE STEEL. BLUE POWDER COAT FINISH. (LESS PLUG GAPPER)  Made in USA DIMENSIONS: W=4.0" , L= 8.0" , H= 2.6" P/N FAP-12

	DRILL JIG & FILING TEMPLETE FOR 3ATI INSTRUMENTS. A SIMPLE TOOL USED TO MAKE THE IRREGULAR 3ATI AIRCRAFT INSTRUMENT MOUNT WHICH IS DIFFICULT TO DO WITH OUT A TOOL LIKE THIS OR BY USING AN EXPENSIVE HOLE PUNCH. WITH PRACTIC AND GOOD TECHNIQUE ACCURATE AND QUICK 3ATI INSTRUMENT MOUNTING IS POSSIBLE. TOOL IS MADE FROM HEAT TREATED ALLOY STEEL. P/N FAP 07-1

Replace worn out shaft assembly with new shaft, bearing holders, bearings and new index clip for carburetor heat control. An economical repair. Certified aircraft. Requires a 337 form on certified aircraft.               P/N FAP-01 for Continental C85, C90 & 0200. Shaft mat'l 4130 - .250 dia. x 5 .130 long shaft.  Weight: 3.5 oz P/N FAP-02 for Continental C-145 & 0300.     Shaft mat'l 4130- .250 dia. x 6.130 long shaft. Weight: 3.7 oz

	Simple repair for worn hole in carb control arm. Mount over existinghole and screw to arm. Plate made of stainless steel for long life.New screw and mounting hardware included. Weight: 17 grams P/N FAP 03

	Compass Deviation Card with Aluminum Holder   Record compass devation for accurate compass headings.Comes with (1) aluminum holder (3) extra cards, plus plastic protective sheet.      2 SIZES AVALIBLE SMALL= 1 1/4'' X 1 3/4''   P/N FAP10-1 Weight: 5 grams LARGE= 1 3/4'' X 2 3/8''   P/N FAP 10 Weight: 6 grams
